| Index| Lithium-Ion Rechargeable| Lithium Button-Type
| Inquiry| Lithium Cylindrical Type| Lithium Polymer
| Lead-Acid| Nickel Metal Hydride| Nickel Cadmium

Bluetooth

Mobile Phone

  Model Nominal Voltage Dimension (mm) Capacity (mAh) Energy (wh)
T W L Minimum Typical

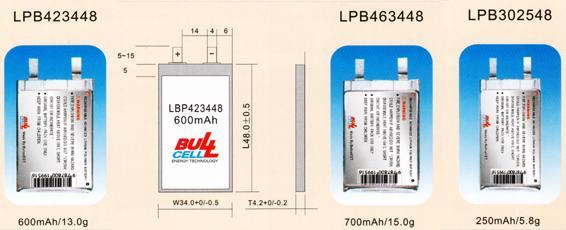

  LPB423448 3.7V 4.2 +0  -0.2 34.0 +0    -0.5 48.0±0.5 600 630 2.22
Energy Density Weight (Approx.)

Temperature

 Charging System (cc/cv)
  wh/l wh/kg Charge Discharge
324 171

13.0g

 0~+45˚C -20~+60˚C 300mA/4.20±0.05V or 600mA/4.20±0.05V
Model Nominal Voltage Dimension (mm) Capacity (mAh)

Energy (wh)
T W L Minimum Typical
  LPB463448 3.7V 4.6 +0  -0.2 34.0 +0    -0.5 48.0±0.5

700

720

 2.59

Energy Density

 Weight (Approx.)

Temperature

 Charging System (cc/cv)
  wh/l wh/kg Charge Discharge
345 173 15.0g 0~+45˚C -20~+60˚C 350mA/4.20±0.05V or 700mA/4.20±0.05V

Model

 Nominal Voltage

Dimension (mm)

 Capacity (mAh)

Energy (wh)
T W L Minimum Typical
LPB302548

3.7V

 3.0 +0  -0.2 25.0 +0    -0.5 48.0±0.5

250

280

 0.93

Energy Density

 Weight (Approx.)

Temperature

 Charging System (cc/cv)
wh/l wh/kg Charge Discharge
257 159 5.8g 0~+45˚C -20~+60˚C

125mA/4.20±0.05V or 250mA/4.20±0.05V


PDA & IMT 2000

Model Nominal Voltage Dimension (mm) Capacity (mAh) Energy (wh)
T W L Minimum Typical

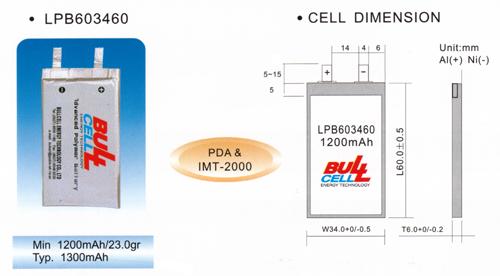

LPB603460 3.7V 6.0 +0  -0.2 34.0 +0    -0.5 60.0±0.5 1200 1300 4.44

Energy Density

 Weight (Approx.)

Temperature

 Charging System (cc/cv)
wh/l wh/kg Charge Discharge
363 193 23.0g 0~+45˚C -20~+60˚C

600mA/4.20±0.05V or 1200mA/4.20±0.05V

Monitronics (S) Pte Ltd
Blk 5 Ang Mo Kio Ind Pk 2A,
#05-26
Singapore 567760
Tel : (65) 67485513  Fax :(65)67448045
