PRISMATIC LITHIUM-ION BATTERY
Energy density is high, it attains volumetric
energy density of 370Wh/L and gravimetric
energy density of 150Wh/kg.
Voltage is high, with average operating voltage
at
3.7V. It is approximately three times that of
Ni-Cd and Ni-MH rechargeable batteries.

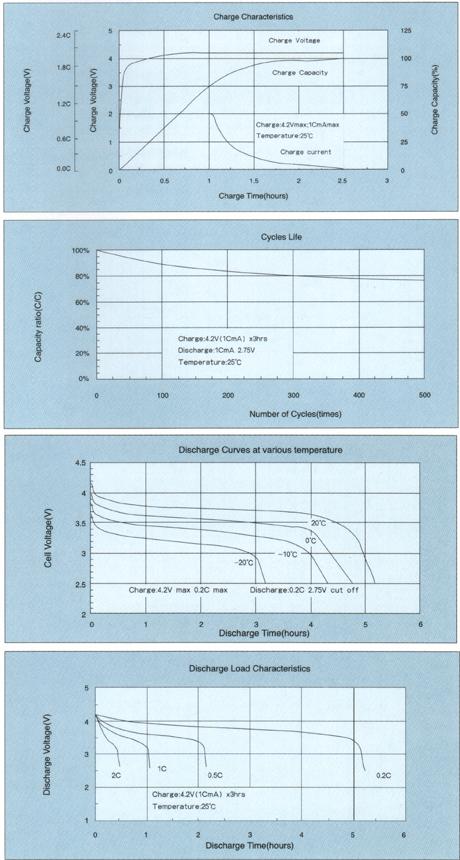

Charge/discharge cycle characteristics are
excellent; batteries may be put through 500 or
more cycles.
Self-discharge is minimal, at fewer than 10%per
month.
There is no memory effect such as those in
Ni-Cd
and Ni-MH rechargeable batteries.
Carbon material, rather than metallic lithium or
lithium alloy, is used as the anode material. The
lithium ion state is maintained over a wide range
of operating conditions, for excellent safety.
Working temperature is suitable for a
wide
range , i
t can work under such circumstances of
-20~60°C.
Quick charge is available, only 70 minutes can we
charge the battery to saturation under the
condition of 1CmA.
PRISMATIC LITHIUM-ION (STEEL SHELL)
Model Number
Voltage (V)
Capacity (mAh)
Dimension (mm)
Internal
Impedance (M
Ω)
Weight (g
±2.0
)
Typical
Rate
T1(Max)
W1(
±0.3)
L1(
±0.5)
ICP042934A
3.7
300
270
4.2
29.0
34.0
≤150
13
ICP043555A
3.7
600
550
4.2
34.7
55.0
≤70
23
ICP043450A
3.7
750
700
4.6
34.0
49.0
≤70
18
ICP043048A
3.7
600
550
4.6
29.5
48.0
≤70
19
ICP053048A
3.7
650
600
5.3
29.5
48.0
≤60
22
ICP053465A
3.7
950
900
5.3
33.7
64.0
≤60
34
ICP053448A
3.7
750
700
5.3
33.7
48.0
≤60
25
ICP053242A
3.7
600
550
5.3
31.5
42.0
≤60
22
ICP063048A
3.7
780
700
6.3
29.5
48.0
≤60
25
ICP063465A
3.7
1200
1100
6.3
33.7
64.3
≤60
40
ICP062248A
3.7
520
500
6.2
21.8
46.5
≤70
17
ICP063448A
3.7
900
850
6.4
33.7
48.0
≤60
30
ICP063455A
3.7
1050
1000
6.5
33.7
55.0
≤60
35
ICP063450A
3.7
950
900
6.6
33.6
50.0
≤70
23.5
ICP061116A
3.7
75
70
6.6
11.3
16.0
≤400
3.5
ICP063065A
3.7
1000
950
6.3
29.5
64.3
≤60
38
ICP073446AR
3.7
950
900
7.0
33.7
46.0
≤60
30
ICP073446A
3.7
950
900
7.2
33.7
45.0
≤60
31
ICP072248A
3.7
650
600
7.7
21.8
46.0
≤60
23
ICP083465A
3.7
1500
1400
7.9
33.7
65.0
≤60
48
ICP083048A
3.7
950
900
7.9
29.5
47.5
≤60
31
ICP083448A
3.7
1050
1000
7.9
33.7
47.0
≤60
34
ICP823448A
3.7
1200
1100
8.2
33.7
48.0
≤60
35
ICP093046A
3.7
1000
950
8.8
29.5
46.0
≤60
31
ICP103448A
3.7
1500
1400
10.2
33.7
48.0
≤60
42
ICP103463A
3.7
1900
1800
10.2
33.7
64.0
≤60
57
ICP103448AR
3.7
1500
1400
10.2
33.7
48.0
≤60
42
ICP103463AR
3.7
1900
1800
10.2
33.7
64.0
≤60
55
ICP143448AR
3.7
1900
1800
14.0
33.7
47.5
≤60
51
ICP063443A
3.7
750
700
6.3
33.7
42.7
≤60
26
ICP061950A
3.7
450
420
6.4
18.8
49.0
≤70
18
ICP101942A
3.7
700
650
9.9
19.0
42.0
≤60
25
ICP053040A
3.7
480
450
5.3
29.5
40.0
≤80
17
ICP063450AR
3.7
950
900
6.6
33.7
49.5
≤60
30
PRISMATIC LITHIUM-ION (ALUMINUM SHELL)
Model Number
Voltage (V)
Capacity (mAh)
Dimension (mm)
Internal
Impedance (M
Ω)
Weight (g
±2.0
)
Typical
Rate
T1(Max)
W1(
±0.3)
L1(
±0.5)
ICP383450B
3.7
650
600
4.0
33.7
50.0
≤60
16
ICP053048B
3.7
650
600
5.3
30.0
47.6
≤60
16
ICP061650B
3.7
400
350
6.3
15.8
50.0
≤70
10
ICP063048B
3.7
800
750
6.3
30.0
47.6
≤60
20
ICP063450BR
3.7
950
900
6.3
33.7
50.0
≤60
23
ICP083448B
3.7
1150
1100
8.2
33.7
48.0
≤60
30
