CYLINDRICAL LITHIUM-ION BATTERY
Energy density is high. It attains volumetric energy
density of 370Wh/L and gravimetric energy density
of 150Wh/kg.
Voltage is high, with average operating voltage
at 3.7V.
It is approximately three times that of Ni-Cd and Ni-
MH rechargeable batteries.

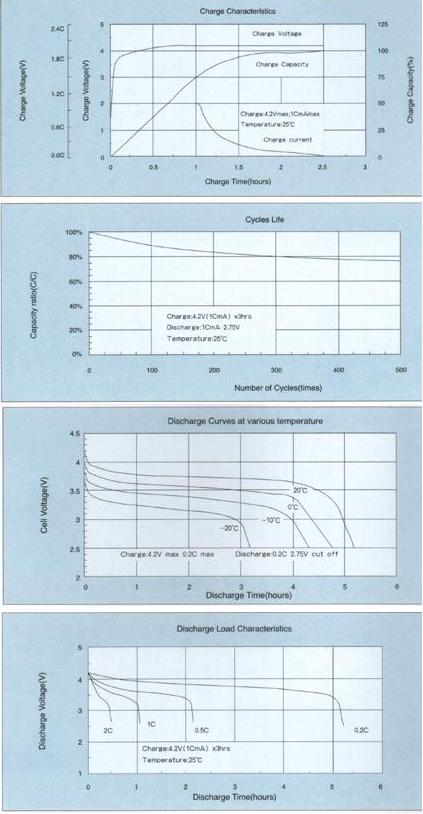

Charge/discharge cycle characteristics are
excellent: batteries may be put through 500 or
or more cycles.
Self-discharge is minimal,
at fewer than 10% per
month.
There is no memory effect such as those in Ni-Cd
and
Ni-MH rechargeable batteries.
Carbon material, rather than metallic lithium or
lithium
alloy is used as the anode material. The
lithium ion state i
s maintained over a wide range of
operating conditions,
for excellent safety.
Working temperature is suitable for a wide range, it
can
work under such circumstances of -20~60°C.
Quick charge is available, only 70 minutes can we
charge the battery to saturation under the condition
of
1CmA.
Model Number
V
oltage (V)
Capacity (mAh)
Dimension (mm)
Internal Impedance (m
Ω)
Weight (g
±2.0
)
Typical
Rate
Φ x L1
ICR14430A
3.7
650
600
Φ14.0±0.2 x 42.5±0.5
≤70
19
ICR14500A
3.7
700
650
Φ14.0±0.2 x 49.5±0.5
≤70
20
ICR17500A
3.7
950
900
Φ16.4±0.2 x 49.5±0.5
≤60
28
ICR17670A
3.7
1250
1200
Φ17.0±0.2 x 66.5±0.5
≤60
36
ICR18500A
3.7
1250
1200
Φ18.0±0.2 x 49.5±0.5
≤60
35
ICR14640A
3.7
870
850
Φ14.0±0.2 x 63.5±0.5
≤60
26
ICR18650A
3.7
1850
1800
Φ18.0±0.2 x 64.5±0.5
≤60
44
ICR18650AH
3.7
2050
2000
Φ18.0±0.2 x 64.5±0.5
≤60
44
ICR15265A
3.7
380
350
Φ15.0±0.2 x 26.5±0.5
≤180
12
ICR13480A
3.7
550
500
Φ12.8±0.2 x 47.5±0.5
≤90
17
ICR14290A
3.7
450
400
Φ14.0±0.2 x 29.0±0.5
≤90
15
ICR16340A
3.7
550
500
Φ16.0±0.2 x 33.5±0.5
≤140
16
ICR17650A
3.7
1350
1300
Φ16.7±0.1 x 65.0±0.5
≤70
36
