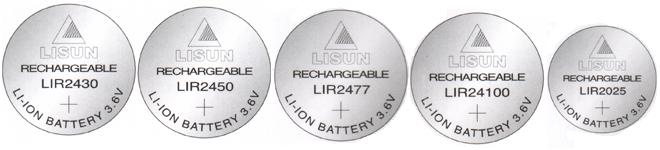

BUTTON TYPE LITHIUM-ION BATTERY
Voltage is high, with average operating voltage at
3.6V. It is approximately three times that of Ni-Cd
and Ni-MH rechargeable batteries.

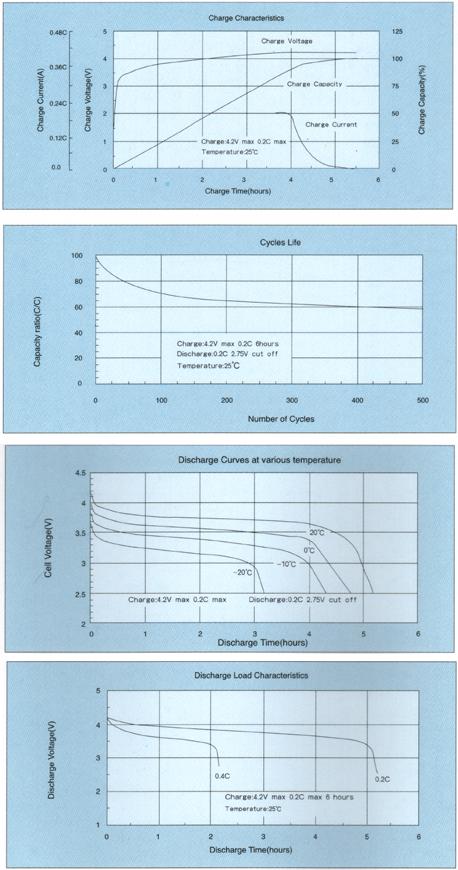

Charge/discharge cycle characteristics are
excellent.
Self-discharge is minimal, at fewer than 10% per
month
There is no memory effect.
Safety characteristics are excellent.
Working temperature is suitable for a wide range, it
can
work under such a circumstances of -2
0~60°C.
The output power is relatively high even though the
size
is small.
Model Number
Normal voltage (V)
Normal Capacity (mAh)
Pulse Current (mA)
Cycle Life (Times)
Dimension (mm)
Approx. Weight (g)
LIR2025
3.6
25
50
300
20.0 x 2.8
2.5
LIR2430
3.6
50
100
300
24.5 x 3.4
4.2
LIR2450
3.6
85
190
300
24.5 x 5.4
5.2
LIR2477
3.6
130
275
300
24.5 x 8.4
7.8
LIR24100
3.6
190
450
300
24.5 x 11.0
11
